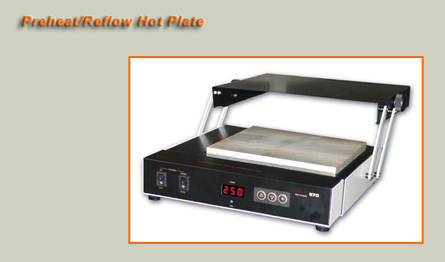

Qualitek 870ESD PREHEAT/REFLOW HOT PLATE
• The special surface distributes heat evenly and maintains a precise and stable temperature. • Closed loop sensor. • PID control • The power supply and heating switches are separate and operate independently. The actual temperature may also be displayed under un-heated conditions to avoid accidents. • Use to reflow soldering and preheating for PCB's and as heating conditions are desired. • ESD safe by design.

QUALITEK 870ESD PREHEAT/REFLOW HOT PLATE
HEATING POWER
800W
PLATE AREA
180mm x 200mm
PLATE MATERIAL
Aluminum
TEMPERATURE SENSOR
K Type Thermocouple
TEMPERATURE RANGE
50°C - 300°C
TEMPERATURE STABILITY


± 1°C

AMBIENT TEMPERATURE
0 - 40°C
DIMENSIONS
280(L)*290(W)*100(H)mm
WEIGHT
5.8 kg
